Customer & Contract API

Introduction

The Customer & Contract API for registered parking users allows you

to sync parking permits and the associated master data
to manage customer relationships, consumer accounts and related parking operations.

These APIs are essential for 3rd party applications that need to handle Customer data which is based on a company (Customer) and employee (Consumer) data structure, embedded in a contract. Parking access is granted on an assigned parking product containing an access (date, time, location) profile.

Key APIs in this category are:

Customer API - Create. read, update. and delete customer accounts (i.e. entity for parking permits)
Consumer API - Manage Consumer profiles and accounts (i.e. parking permits)
Contract API - Handle Customer contracts and agreements (i.e. contractual parameters for parking permits)

Note: If you only manage / sync one dedicated Customer (Company) it can be suitable to not dynamically create a Customer and an associated Contract as references/entities for the sync of Consumer (parker/employee) but to create these entities in the parking management first and to use the associated references as pre-shared information for the REST requests. In this case the Consumer API is mainly used.

pre-configured Tenant Name
pre-configured CustomerBusinessID
pre-configured ContractBusinessID
productBusinessID

Note

If the sync of parking permits is based on a 3rd party application reference, the field externalReference needs to be used (references are always unique and used for indexing.)

Explore APIs

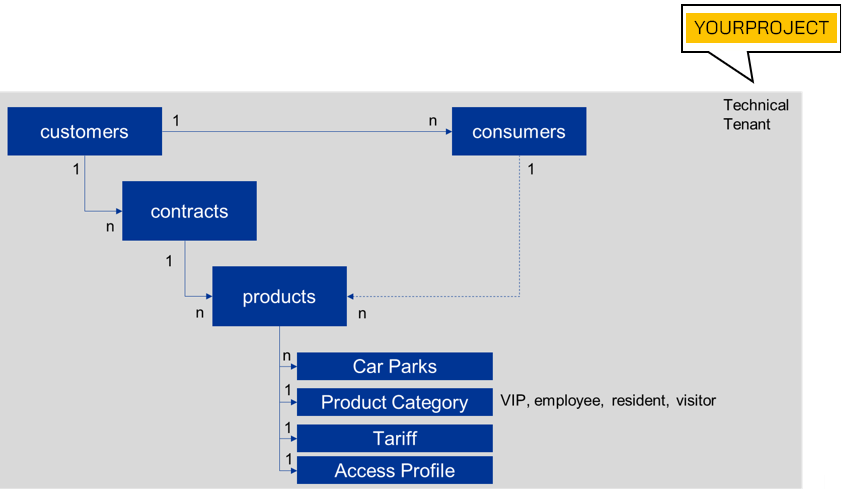

Customer & Contracts Data Topology

Your Project

Business Terms

Term	Definition	Comment
YOURPROJECT	A placeholder (path parameter) in the URL that developers must replace with the actual project name or project ID for their environment	Pre-shared
Technical Tenant	A project is a technical tenant and has separate data, no multi-tenancy across tenants
Customer	Customer is an organization entity, usually a company A Person is a single entity	Usually, one company is used for sync initiated from 3rd party systems
Contract	Is an entity which provides the business context for parking permits
Consumer (i.e. parker)	Has at least one parking product and a license plate number and is assigned to a contract	This is the entity which uses a parking permit and parks in a car park
Product	Provides the business context where and when and how to park	Can be used to differentiate groups for different parking policies
Invitation	An invitation is used to invite/enable a consumer to use SmartSelect portal for self-management of his account	Only valid if smart select portal is used in the project

Premises

Term	Definition	Comment
Identification for parking	The Parking management system provides the following identification options: License plate, QR code.
Mandatory pre-shared references for API usage	The Parking management system: pre-configured Tenant Name pre-configured Customer-BusinessID pre-configured Contract-BusinessID productBusinessId
Conditions for creating and updating a consumer (which is the one that is parking)	license plate is valid (pattern = `"^[A-ZÄÖÜ0-9]*$"`, length %, country, region code if entered is valid, check …) product exists and is configured in the contract email is valid (optional) There is no check for uniqueness for two consumers with same e-mail address There is a check for uniqueness of external externalReference (S&B external ID for staffID) per Consumer there is a check for uniqueness for license plate number license plate is not used for another consumer, also not for another Company (Customer)	externalReference can be used as a reference for synchronizing consumer master data productBusinessId refers to a parking product (can also be dynamically consumed)
Conditions for a consumer to be able to park are:	Valid Customer Valid contract with parking products for that facility Valid parking product Valid consumer Valid parking media: License plate first name and last name e-mail address mandatory assigned product	See also pre-shared references

Minimal Use Case for Data Feed (Sync) from 3rd Party System

The synchronization of consumers (which are parking in a car park) is based on CRUD operations for a single consumer or a list of consumers using solely the Consumer API.

If a POST method is called and the c is found in the parking system, the existing record is updated with the new data.

Use Case	Parking Management System	Comment
The 3rd party system is the leading system, and a minimal data set is synced to the parking management system	externalReference can be used for sync with 3rd party systems	Note: If not, all fields are populated, some parking management functions will not be available, e.g.
Syncing for only one Customer (Company)	The Parking management system: pre-configured Tenant Name pre-configured Customer-BusinessID pre-configured Contract-BusinessID
Initial Load (of consumers) Create Consumer for the given Customer (Company)	CustomerBusinessID plus externalReference (to be unique for each consumer)	Recommendation is to use this on very low frequency
Incremental Update (of consumers) Create Consumer for the given Customer (Company)	CustomerBusinessID plus externalReference (to be unique for each consumer)
Search for a Consumer by externalReference	Search by external reference and/or e-mail (in all customers) POST `https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/yourproject/consumers`
Disable Consumer for the given Customer (Company)
Delete Consumer for the given Customer (Company)

Customer APIs

GET list of customers

GET https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Customer/getCustomers

Request Body Example

{

}

Create customer

POST https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Customer/createCustomer

Company - Request Body Example

{
    "customerType": "COMPANY",
    "company": {
        "name": "Name",
        "certificateOfRegistration": "Company registration number",
        "registerCourt": "Registration authority",
        "taxNumber": "Tax number",
        "vatId": "VAT identification number",
        "costCenter": "Cost center"
    },
    "addresses": [
        {
            "street": "Street",
            "houseNo": "51",
            "postCode": "Postcode",
            "city": "City",
            "country": "DEU"
        }
    ],
    "defaultContact": {
        "firstName": "First ",
        "lastName": "Last ",
        "email": "test@test.com",
        "phoneNumber": "+32875554"
    },
    "contacts": []
    }

Person - Request Body Example

{
  "customerType": "PERSON",
  "person": {
    "firstName": "First",
    "lastName": "Last ",
    "email": "test@test.test",
    "costCenter": "Cost center",
    "phoneNumber": "+9874644"
  },
  "addresses": [
    {
      "street": "Street",
      "houseNo": "11",
      "postCode": "Postcode",
      "city": "Postcode",
      "country": "DEU"
    }
  ]
}

GET customer

GET https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Customer/getCustomer

Update customer

PUT https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Customer/updateCustomer

Company - Request Body Example

{
  "customerType": "COMPANY",
  "addresses": [
    {
      "street": "Street",
      "houseNo": "11",
      "postCode": "Postcode",
      "city": "City",
      "country": "DEU",
      "revision": 0
    }
  ],
  "company": {
    "name": "Name",
    "certificateOfRegistration": "Company registration number",
    "registerCourt": "Registration authority",
    "taxNumber": "Tax number",
    "vatId": "VAT identification number",
    "costCenter": "Cost center"
  },
  "defaultContact": {
    "firstName": "First ",
    "lastName": "Last ",
    "email": "test@test.com",
    "phoneNumber": "+3287555"
  },
  "revision": 1
}

Person - Request Body Example

{
  "customerType": "PERSON",
  "person": {
    "firstName": "First",
    "lastName": "Last ",
    "email": "test@test.test",
    "costCenter": "Cost center",
    "phoneNumber": "+9874644"
  },
  "addresses": [
    {
      "street": "Street",
      "houseNo": "11",
      "postCode": "Postcode",
      "city": "Postcode",
      "country": "DEU",
      "revision": 1
    }
  ]
}

Delete customer

DELETE https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Customer/deleteCustomer

Contract APIs

Create contract

POST https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/contracts

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Contract/createContract

Request Body Example

{
  "label": "Contract name",
  "startTime": "2024-12-01T00:00:00Z",
  "endTime": "2025-02-28T23:59:00Z",
  "customer": "C2024C4H3i30",
  "operator": "OP9763070",
  "status": "ACTIVE",
  "productsDetails": [
    {
      "productId": "PP000017",
      "contingentAmount": 1,
      "facilities": [
        "FC9763070",
        "FC5579040",
        "FC5802558"
      ]
    },
    {
      "productId": "PP000019",
      "contingentAmount": 1,
      "facilities": [
        "FC9763070",
        "FC5579040",
        "FC5802558"
      ]
    }
  ]
}

GET contract

GET https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/contracts/{contractBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Contract/getContract

Update contract

PUT https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/contracts/{contractBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Contract/updateContract

Request Body Example

{
  "label": "Contract name11",
  "startTime": "2024-12-01T00:00:00Z",
  "endTime": "2025-02-28T23:59:00Z",
  "customer": "C2024C4H3i30",
  "operator": "OP9763070",
  "status": "ACTIVE",
  "revision": 0,
  "productsDetails": [
    {
      "productId": "PP000017",
      "contingentAmount": 1,
      "facilities": [
        "FC9763070",
        "FC5579040",
        "FC5802558"
      ]
    },
    {
      "productId": "PP000019",
      "contingentAmount": 1,
      "facilities": [
        "FC9763070",
        "FC5579040",
        "FC5802558"
      ]
    }
  ]
}

Delete contract

DELETE https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/contracts/{contractBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Contract/deleteContract

Consumer APIs

GET list of consumers

GET https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/consumers

Swagger: https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html?urls.primaryName=v2#/Consumer/getConsumers

Request body example

{

}

Create consumer

POST https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}/consumers/regular/aggregates?sendInvitation=false

Parameters: sendInvitation: if true, system sends an invitation after the creation of the consumer.

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/RegularConsumer/createConsumer

Request body example

{
  "firstName": "First ",
  "lastName": "Last ",
  "email": "test@mail.de",
  "externalReference": "External ID",
  "costCenter": "Cost center",
  "mediums": [
    {
      "businessId": null,
      "revision": null,
      "type": "LICENSEPLATE",
      "value": "MM5478",
      "encoding": "HEX",
      "licencePlateRegion": {
        "code": "M",
        "country": "DEU"
      }
    }
  ],
  "contract": {
    "businessId": "A2024XW3pYsa2f",
    "products": [
      "PP000053",
      "PP000019"
    ]
  }
}

GET consumer

GET https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}/consumers/regular/{consumerBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/RegularConsumer/getConsumer_1

Update consumer

PUT https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}/consumers/regular/aggregates/{consumerBusinessID}

Parameters:

sendInvitation: if true, system sends an invitation after the update of the consumer.

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/RegularConsumer/updateConsumer

Request body example

{
  "businessId": "N20243gOoi3ef",
  "firstName": "First 1",
  "lastName": "Last ",
  "email": "test@mail.de",
  "externalReference": "External ID",
  "costCenter": "Cost center",
  "mediums": [
    {
      "businessId": "MPliczWk",
      "revision": 0,
      "type": "LICENSEPLATE",
      "value": "MM54785",
      "encoding": "HEX",
      "licencePlateRegion": {
        "code": "M",
        "country": "DEU"
      }
    }
  ],
  "contract": {
    "businessId": "A2024XW3pYsa2f",
    "products": [
      "PP000053",
      "PP000019"
    ]
  },
  "revision": 0
}

Delete consumer

DELETE https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}/consumers/regular/aggregates/{consumerBusinessID}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/RegularConsumer/deleteConsumer

Search consumer

Search by email (for a customer)

GET https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/customers/{customerBusinessID}/consumers/regular/aggregates

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/RegularConsumer/getConsumersAggregatesByCustomer

Request body example

{
  "page": 0,
  "size": 10,
  "sortBy": "email",
  "sortDirection": "ASC",
  "productBusinessId": [
    "PP000022",
    "PP000040"
  ],
  "name": "Paxton",
  "lpn": "MS1987",
  "email": "Fausto_Bernhard62@gmail.com"
}

Search by external reference and/or email (in all customers)

POST https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/consumers

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html?urls.primaryName=v2#/Consumer/getConsumers

{
  "page": 0,
  "size": 100,
  "sortDirection": "DESC",
  "and": {
    "consumer": {
      "consumerEmail": null,
      "regular": {
        "externalReference": "93635"
      }
    }
  }
}

Search consumers in all customers by license plate

POST https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/consumers

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html?urls.primaryName=v2#/Consumer/getConsumers

Request body example

{
  "page": 0,
  "size": 100,
  "sortDirection": "DESC",
  "and": {
    "consumer": {
      "consumerTypeList": [
        "REGULAR"
      ],
      "consumerLpn": "E031002"
    }
  }
}

Block/Unblock consumer

PATCH https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/v2/YOURPROJECT/consumers/{consumerBusinessID}/block-status

Request body example

{
  "blocked": true
}

Swagger:
https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swagger-ui/index.html#/Consumer/updateConsumerBlockStatus

Swagger documentation URL

https://pm.preprod.parking.scheidt-bachmann.net/customers-contracts/swaggerui/index.html

Introduction​

Explore APIs

Customer & Contracts Data Topology​

Business Terms​

Premises​

Minimal Use Case for Data Feed (Sync) from 3rd Party System​

Customer APIs​

GET list of customers​

Request Body Example​

Create customer​

Company - Request Body Example​

Person - Request Body Example​

GET customer​

Update customer​

Company - Request Body Example​

Person - Request Body Example​

Delete customer​

Contract APIs​

Create contract​

Request Body Example​

GET contract​

Update contract​

Request Body Example​

Delete contract​

Consumer APIs​

GET list of consumers​

Request body example​

Create consumer​

Request body example​

GET consumer​

Update consumer​

Request body example​

Delete consumer​

Search consumer​

Search by email (for a customer)​

Request body example​

Search by external reference and/or email (in all customers)​

Search consumers in all customers by license plate​

Request body example​

Block/Unblock consumer​

Request body example​

Swagger documentation URL​

Introduction

Customer & Contracts Data Topology

Business Terms

Premises

Minimal Use Case for Data Feed (Sync) from 3rd Party System

Customer APIs

GET list of customers

Request Body Example

Create customer

Company - Request Body Example

Person - Request Body Example

GET customer

Update customer

Company - Request Body Example

Person - Request Body Example

Delete customer

Contract APIs

Create contract

Request Body Example

GET contract

Update contract

Request Body Example

Delete contract

Consumer APIs

GET list of consumers

Request body example

Create consumer

Request body example

GET consumer

Update consumer

Request body example

Delete consumer

Search consumer

Search by email (for a customer)

Request body example

Search by external reference and/or email (in all customers)

Search consumers in all customers by license plate

Request body example

Block/Unblock consumer

Request body example

Swagger documentation URL
